4BA300NA -A+

Normal steel (series 4BA/NA)

7,800.00 zł

Extra options

Interfaces
Outputs
Cables
Functions
Accessory
Additional configuration
Total option price
Tax excluded

Readability [d]: 0,1kg

Capacity [max]: 300kg

  • construction: smooth painted steel
  • 1 or 2 ramps
  • sensors IP67
  • indicator: painted aluminium
  • products and users database
Legal verification no

Legal verification



Security policy

  Shipping rules

(contact dealer in your area)

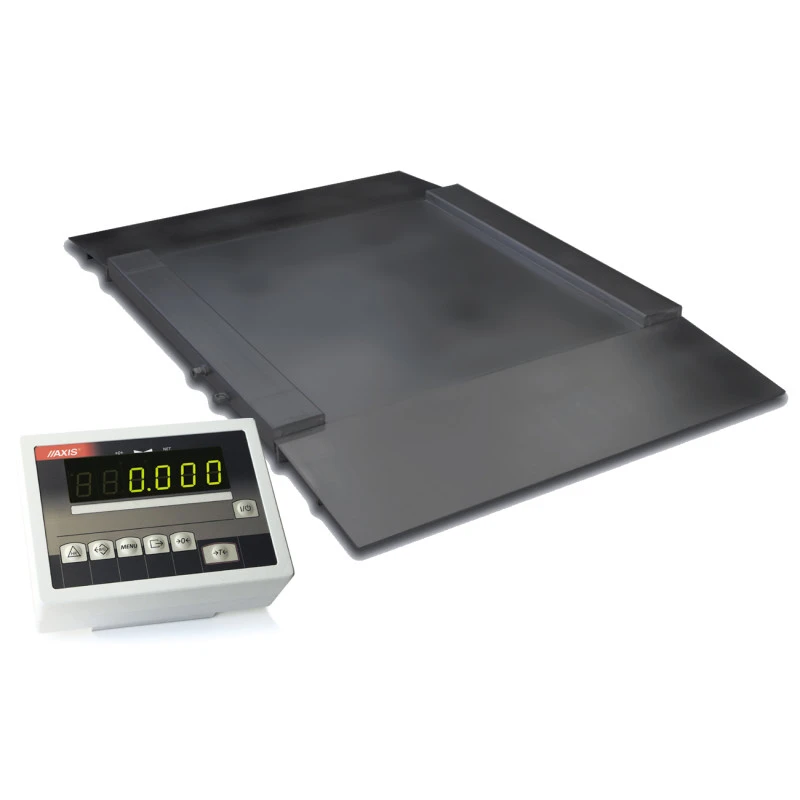

Overrun scales of 4BA/NA series are designed for weighing loads on manual carts. Due to structural material (powder coated steel) they may be used only in dry rooms. All scales have a full set of special functions.

Scales platforms are available in the following dimensions:

A - 860(internal)x1000x48mm
A+ - 1000(internal)x1000x48mm
B - 1000(internal)x1250x48mm
C - 1250(internal)x1500x58mm

Capacity (Max)
300kg
Reading unit (d)
0,1kg
Verification unit (e)
0,1kg
Tare range
-Max
Accuracy class
III
Interfaces
standard: RS232
Working temperature
-10÷40°C
Weighing time
under 4s
Power supply
~230V 50Hz 8VA
Balance weight
160kg
Meter IP protecion
-
Sensor IP protection
IP67
Platform dimensions
1000x1000 x48mm
Overrun dimensions (length x height)
355x48mm
