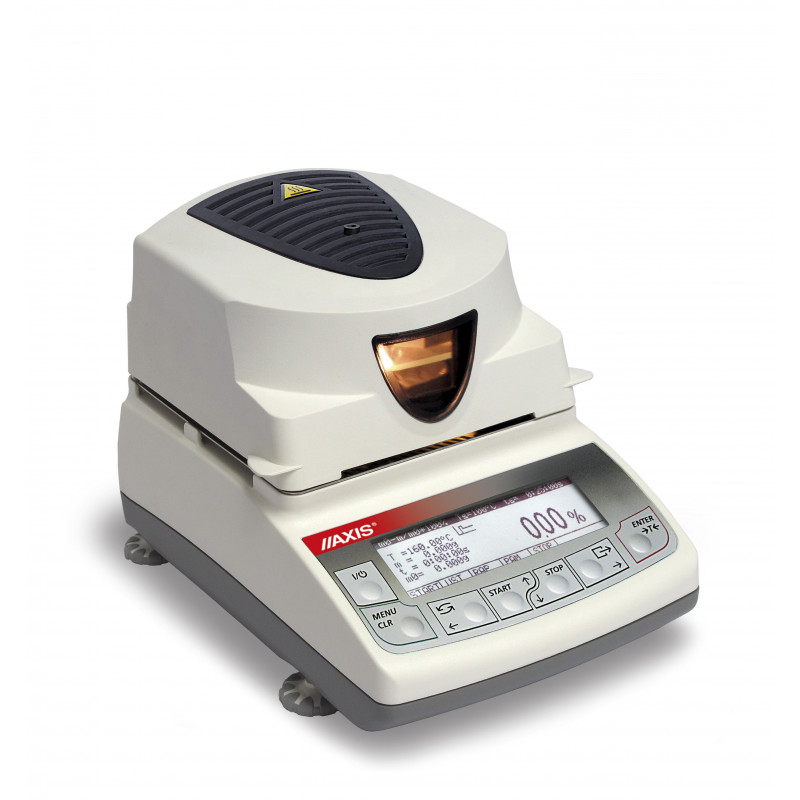

ATS210

Moisture analyzers (series ATS)

3,700.00 zł
3,600.00 zł Save 100.00 zł

Extra options

Cables
Software
Accessory
Total option price
Tax excluded

Readability [d]: 1mg

Capacity [max]: 210g

  • halogen radiators
  • graphical display
  • text menu
  • drying chart displaying
  • drying profiles
  • USB, RS232C and PS2 interface

Capacity (Max)

Drying temperature

  • 160ºC 3,600.00 zł



Security policy

  Shipping rules

(contact dealer in your area)

Moisture analyzers of ATS series are used for quick and precise determination of material humidity upon the basis of weight loss during drying of its small sample (thermo-gravimetrical method). Halogen radiators ensure efective sample drying. ATS functioning is based on laboratory scale mechanism.


Time, temperature and drying profile (course) can be adapted to examinated material features. To simplify drying parameters choice, initial drying can be done with graph result.
The RS232C connection permits to connect a printer or a computer in order to print receipts, raports or further processing weighing results. The printed raports enable fulfilment of GLP recommendation.

Temperature correction (option):


Special functions:
- 4 drying profiles: standard, slow, step and fast
- 20 drying settings memory

Capacity (Max)
210g
Reading unit (d)
1mg
Interfaces
RS232C, PS2, USB
Working temperature
+18÷33ºC
Weighing time
under 8s
Dimensions
185x290x170mm
Power supply
~230V 50Hz 230VA
Balance weight
3,9kg
Weighing chamber dimensions
ø108x20mm
Pan size
ø90mm
Humidity measurement repeatability
+/- 0,1%(próbka 2g) +/- 0,04%(próbka 5g)
Humidity readout precision
1% (sample 0,02÷0,5g) | 0,1% (sample 0,5÷5g) | 0,01% (sample <5g)
Drying temperature
160ºC
Sampling time
1-180s
Max drying time
10h
Chamber heating time up to 100°C
about 3min.
