ME-12/N/G

Industrial scales (series Weight meters)

1,630.00 zł

Tax excluded

Readability [d]: 1, 2, 5, 10, ... (g, dkg, kg)

data exchange with computer
standard RS232C communication
communication through RS-485 or LAN (option)
function and alphanumerical keys
big graphical display

Security policy

Shipping rules

(contact dealer in your area)

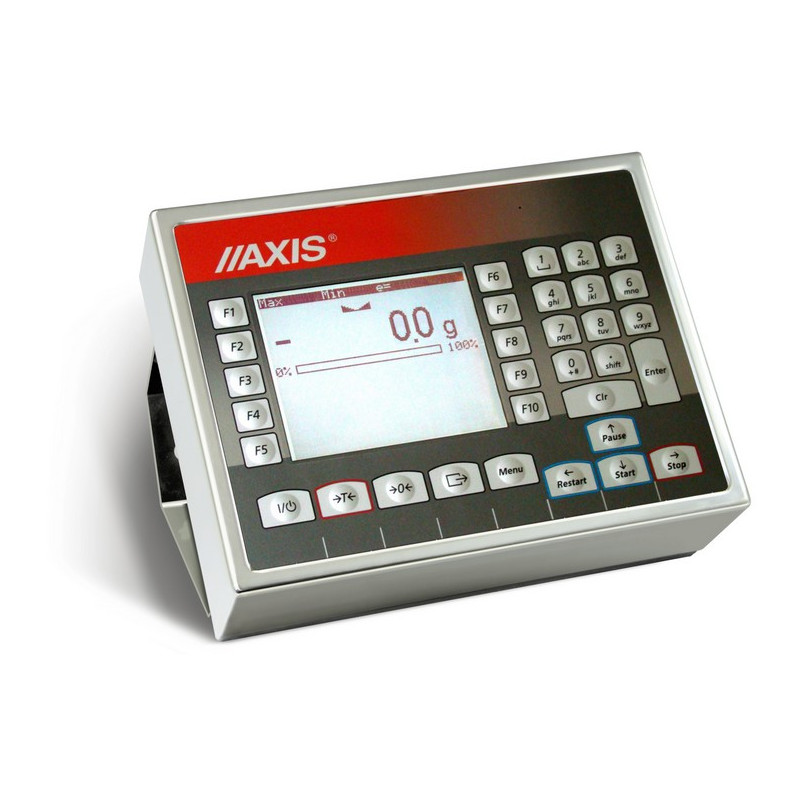

ME-12 meters enable entering additional data to the scales, e.g. unit weight, product code, product name, to be used in computer data collection systems, control of packaged goods, control of the company (stock, sale) as well as in special functions of the scales.

They have a letter-digit keyboard and a large graphic display, which allows the use of a text menu, as well as displaying information from the computer database. Built-in scale base for 400 products and 100 users.

The meter's firmware includes a handy application for controlling packaged goods (printing control reports). In cooperation with the computer program INTER (data collection) or TP (packaged goods), it is possible to work in a multi-station computer network (RS485 or LAN).

The order should specify what interface is to be installed: the standard is RS232C (to a computer or printer), for an extra charge - RS485 (surcharge of PLN 190) or LAN (surcharge of PLN 450).

Reading unit (d): 1, 2, 5, 10, ... (g, dkg, kg)
Verification unit (e): any
Tare range: -Max
Working temperature: -10÷40°C
Dimensions: 238x180x86mm
Power supply: ~230V 50Hz 6VA
Display: graphical
Balance weight: 3kg
Range (verification units quantity): max 6000e (3000e per subrange)
Protection: IP65
Applied error fraction: 0,5
Lowest possible input signal: 0,3µV/e
Sensor impedance: 40÷4000 Ohm
Sensor supply: 5V AC 25Hz
Sensor connecting system: 1 sensor: 4-wire system, 1-8 sensors: 6-wire system
Housing: stainless steel
Keyboard: numeric-letter and function keys
Zakres napięcia pomiarowego: -10mV ÷ 10mV lub 0mV ÷ 10mV
Ilość podłączonych czujników: max 8
