FSC200

Torque measurement (series FSC)

4,600.00 zł

Extra options

Outputs
Cables
Additional configuration
Total option price
Tax excluded

Readability [d]: 0,1Nm

Capacity [max]: 200Nm

  • torque measurement in both directions
  • high speed of measurement - up to 1000 samples per second
  • peak mode
  • storing measurement results into memory or microSD card
  • USB and RS232C serial interface
  • statistics, graphs, comparing to thresholds function



Security policy

  Shipping rules

(contact dealer in your area)

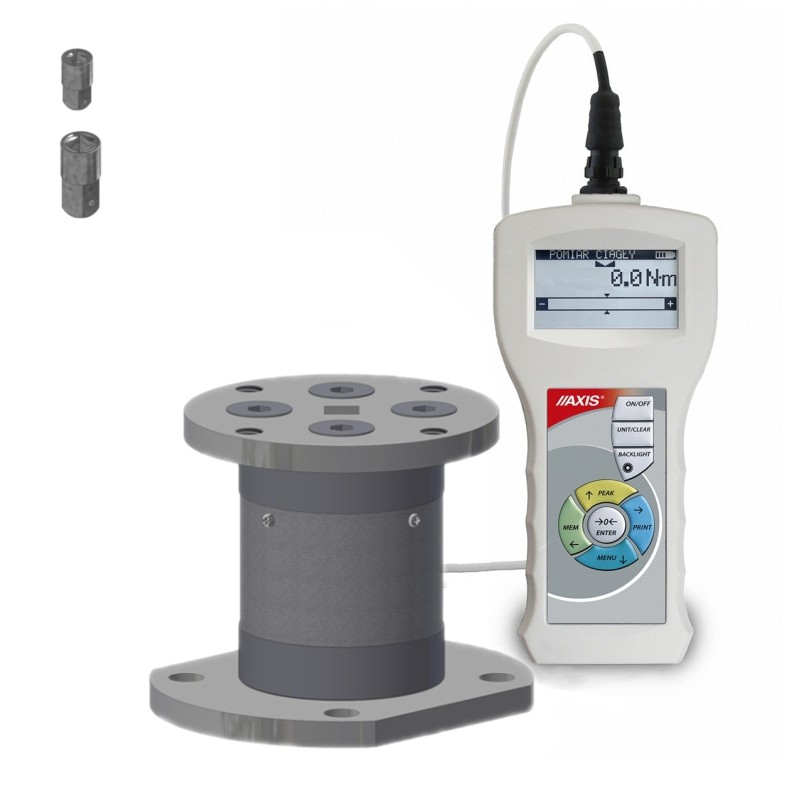

FSC series torque testers are designed to control/test tension wrenches. It is possible to register maximal torque or real-time registering of changing torque.



Measurement head is mounted to control desk and the controled tension wrench is fitted to 1/4'' hole (FSC2, FSC5, FSC10) or 3/8" hole (FSC100) situated on the measurement head.

Measurement head in FSC500 model doesn't have adapter for tension wrench. FSC500 set is equipped only with force sensor.

Special functions:
- peak value measurement
- threshold comparision
- statistics
- measurement unit selection

Capacity (Max)
200Nm
Reading unit (d)
0,1Nm
Interfaces
RS232C, USB, option: transoptor out (threshold function)
Working temperature
0 ÷ +40°C
Dimensions
Ø75/Ø90 (measuring head)
Power supply
supply ~230V 50Hz / 12V; 1,2A ; accumulator supply 4xAA
Accuracy
±0,5% F.S.
Maximal overload
50% measurement range
Display
LCD graphical
Balance weight
1,5kg (sensor) + 600g (meter)
Wrench size
no adapter
